MIRA Tooling and Setting Gauges



DSD Double Edged Toolheads

Heavy Duty Valve Seat Refacing

The Double Edged Toolhead with exchangeable hard alloy carbide tips makes it easy to rationally turn out valve seat rings and to manufacture ring seat counterbores with great accuracy.

Available in different diameters

  • DSD Ø55-75mm / 5°
  • DSD Ø55-75mm / 0°
  • DSD Ø45-55mm / 5°
  • DSD Ø45-55mm / 0°
  • DSD Ø35-45mm / 5°
  • DSD Ø35-45mm / 0°

Go to the Onlineshop

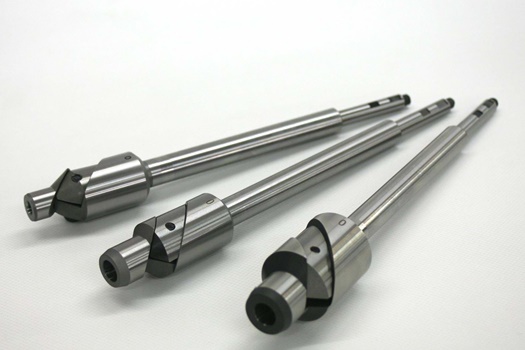

DRC Toolheads for VG-91 and Centronic

For the VG-91 Valve Seat Refacing Unit

With the DRC Toolheads it is possible to process more different Valve Seat diameters with the VG-91. Made for the same accuracy as with the mounted DRC-01 in the VG-91 Spindle Guide. With these spindles, the processing of Valve Seats with the VG-91 will be advanced and more flexible. According to the Instructions in the VG-91 Instruction Manual, the spindles can be exchanged easily and precise.

Available in different diameters

  • Toolhead DRC05 / 16 - 25mm Valve Seat diameters
  • Toolhead DRC1 / 21 - 45mm Valve Seat diameters
  • Toolhead DRC2 / 37 - 55mm Valve Seat diameters

Go to the Onlineshop

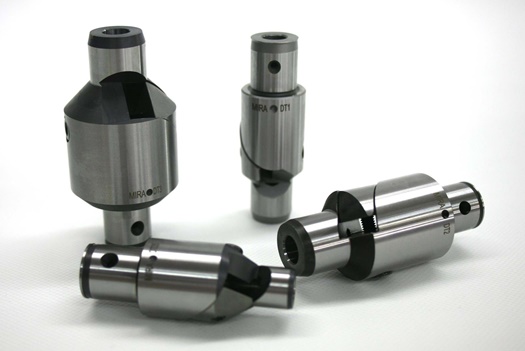

DT Toolheads for VGX-21



DT Toolheads for MIRA VGX-21 valve seat refacing unit.

Available in different diameters

  • DT05 Ø16-35mm
  • DT1 Ø 21-45mm
  • DT2 Ø 37-55mm
  • DT3 Ø 35-75mm

Go to the Onlineshop

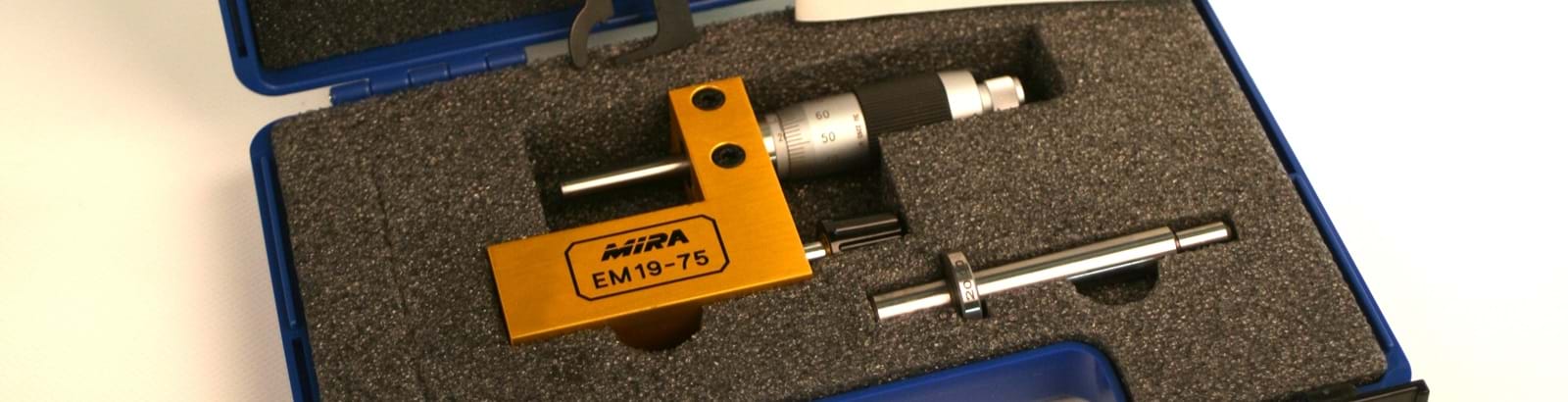

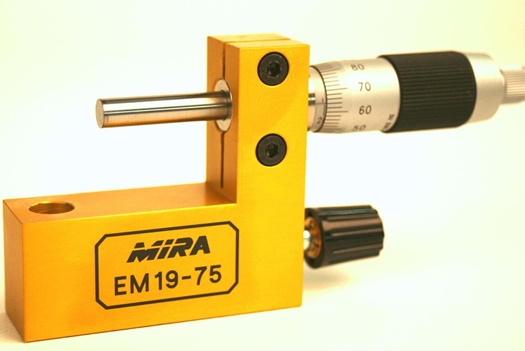

EM19-75 Micrometer with Gauge

Direct Toolhead Adjusting System

The EM19-75 Micrometer was designed to decrease the amount of setting work to a minimum. Builded for direct adjusting on the Valve Seat Refacing Unit allows the EM19-75 Micrometer a precise and fast setting of the Formtool by using DT and DRC Toolheads.

By means of the included gauge, the zero setting of the micrometer can be checked.



The EM19-75 Micrometer with Gauge includes

  • EM19-75 Micrometer with Gauge and Stop
  • Calibration Gauge
  • Hook Spanner
  • Instruction Manual
  • Mini Suitcase (Plastic)

Go to the Onlineshop

EM25-75 Micrometer with Gauge

Precision for Fast Toolhead adjusting

The MIRA adjusting micrometer EM25-75 makes it possible to rapidly adjust the selected toolhead for seat ring processing to the exact and desired overdimension. Based on the rapid adjustability a high degree of productivity is achieved.

By means of the included gauge, the zero setting of the micrometer can be checked.



The EM25-75 Micrometer with Gauge includes
  • EM25-75 Micrometer with Gauge and Stop
  • Calibration Gauge
  • Hook Spanner
  • Instruction Manual
  • Storage Box

Go to the Onlineshop
