Vario Drive-EVO

The VD-EVO Variable Electronic Speed Drive Unit does improve the efficiency of our cylinderhead workplace.

The new VARIO DRIVE EVO significantly improves the efficiency of our cylinderhead workplace. The unit enables a fatigue-free and time saving refacing of valve seats and counterbores and guarantees a smooth and even cutting motion. The new VARIO DRIVE EVO is well adapted to complete all hand-driven MIRA valve seat units.

The System is stepless adjustable between 50 - 200 Rpm.

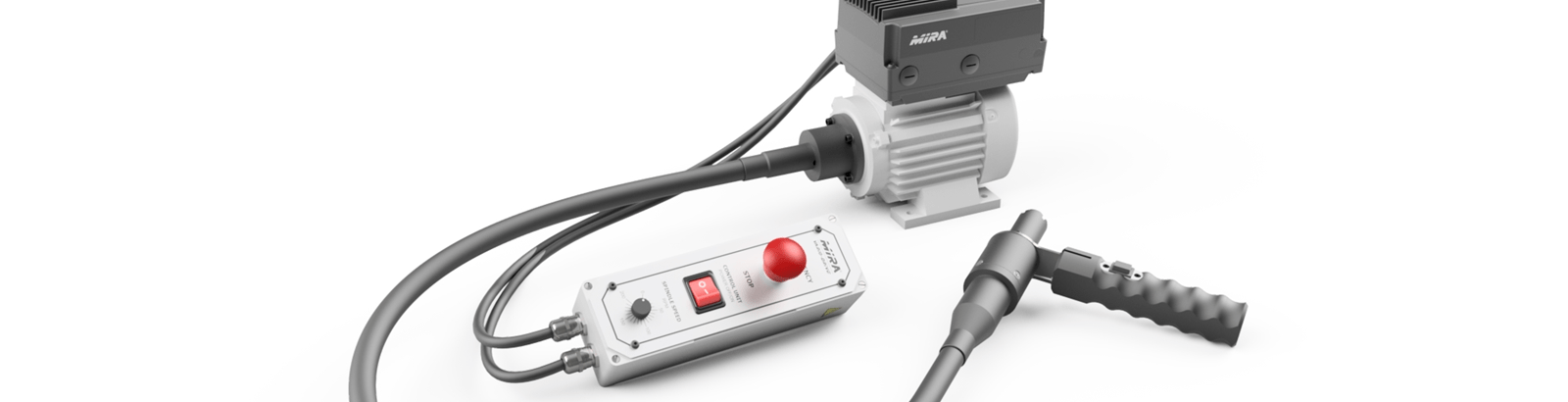

The VD-EVO Vario Drive includes
  • Vario Drive VD-EVO Stand-Alone-Unit
  • Vario Drive VD-EVO Control Box
  • Power Motor with flexible Drive System
  • Adapter Unit with ON/OFF handle switch
  • Instruction Manual in English or German

Specifications

Flex drive lenght 1400 mm
Electronic drive unit Variable 0-200 1/min
System Voltage 110/230 Volt 50/60 Hz
Packing Dimensions 800 x 600 x 510mm
Weight 20 kg gross / 16 kg net

HM-2000 EVO and VGX-21 Handling
