VGX-21 Package
With fast changeable Toolhead System

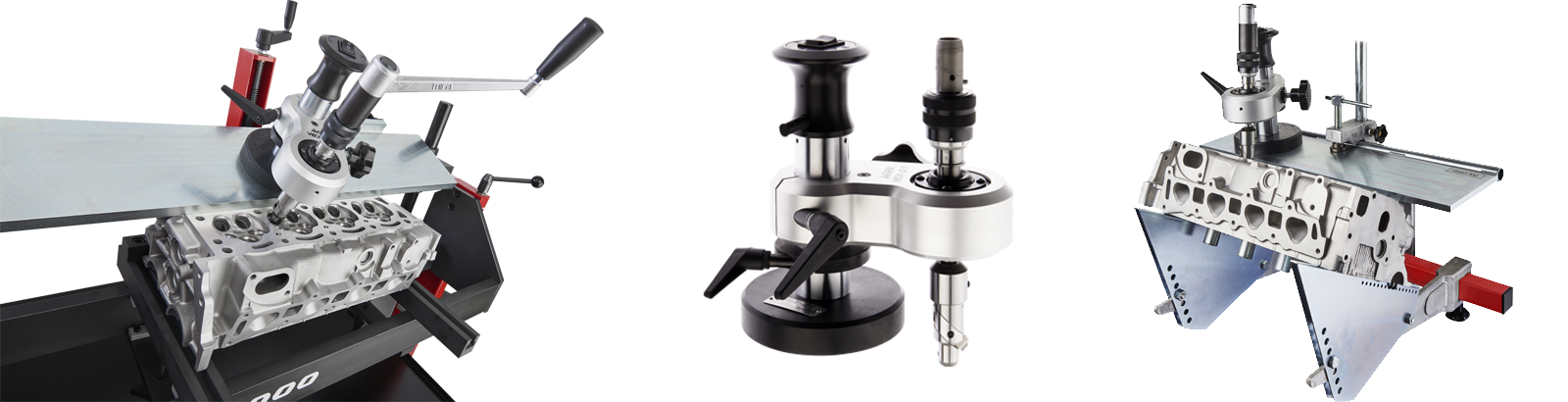

The portable VGX-21 valve seat refacing unit has been developed for the specialised petrol and diesel cylinderhead workshop. The highly accurate valve seat processing is achieved by a spherical spindle guide bearing as well as a unique hydraulic ball clamping system. A almost pressure free centering and braceless fixing of the MIRA rotary head is made possible in order to achieve precise and concentric valve seats.
Specifications
- Valve stem diameter 4 - 16mm
- Valve seat diameter 16 - 75mm
- Seat ring couterbores 21 - 75 mm
The VGX-21 Package includes
- VGX-21 Valve Seat Refacing Unit
- DT1 Toolhead for 21-45mm Diameters
- 06 FD Type Pilots (Standard selection)
- 06 SK Type Formtools (Standard selection)
- AV Basic Cylinderhead Support for Wall mounting
- Service Tooling and Equipment
- Manual Crank-Handle
- Instruction Manual and Formtool Catalog
- Wooden Storage Box
Optional Equipment
- DT05 toolhead for 16 - 25 mm seat diameters
- DT2 toolhead for 37 - 55mm seat diameters
- DT3 toolhead for 35 - 75mm seat diameters
- DSD double edged toolhead for 26 - 36mm 0° or 5°
- DSD double edged toolhead for 35 - 45mm 0° or 5°
- DSD double edged toolhead for 45 - 55mm 0° or 5°
- DSD double edged toolhead for 55 - 75mm 0° or 5°
- Adjusting Micrometer EM25 - 75
- VD-97 Vario Drive Electronic Drive unit
- MUV-95 Multivac Vacuum Test Unit
